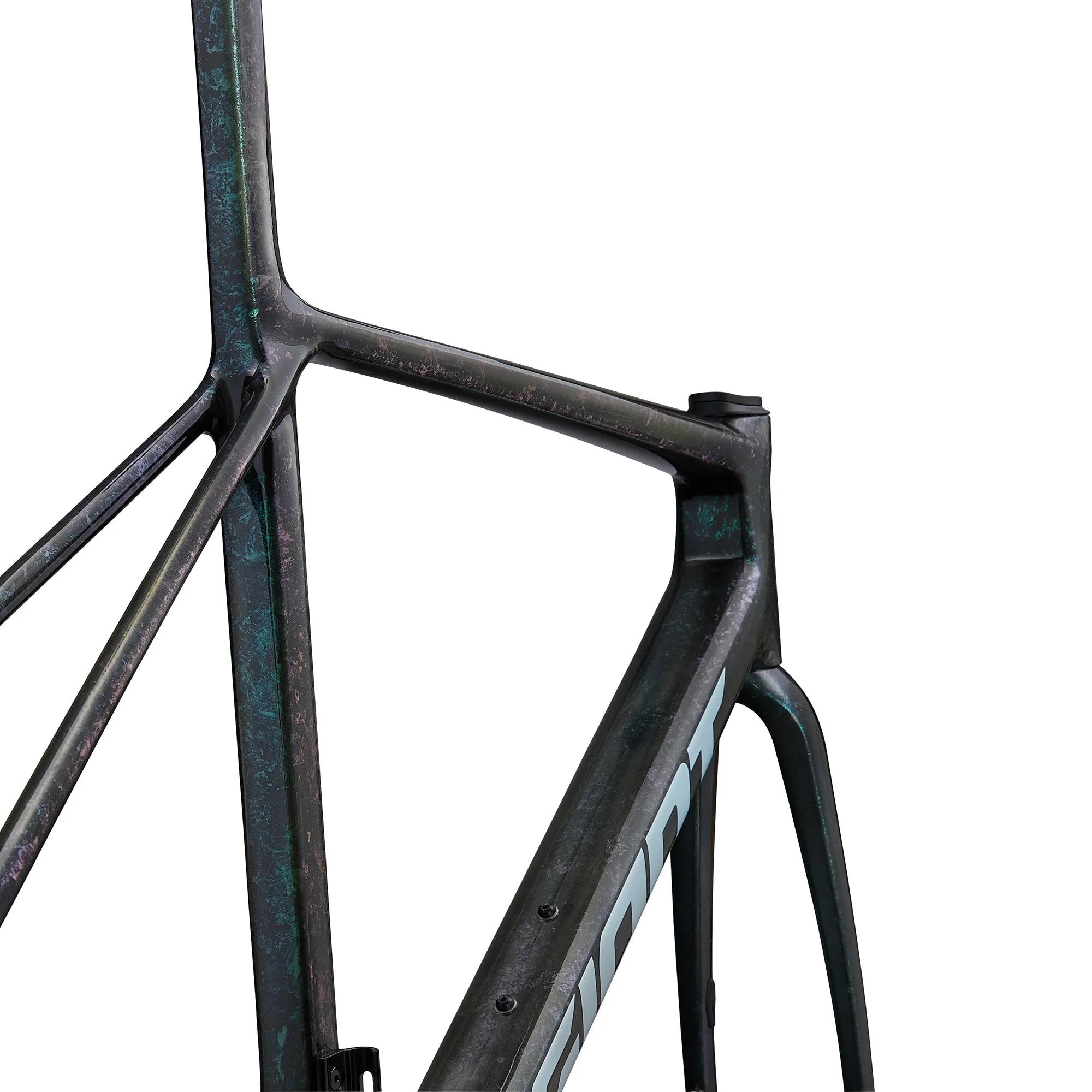

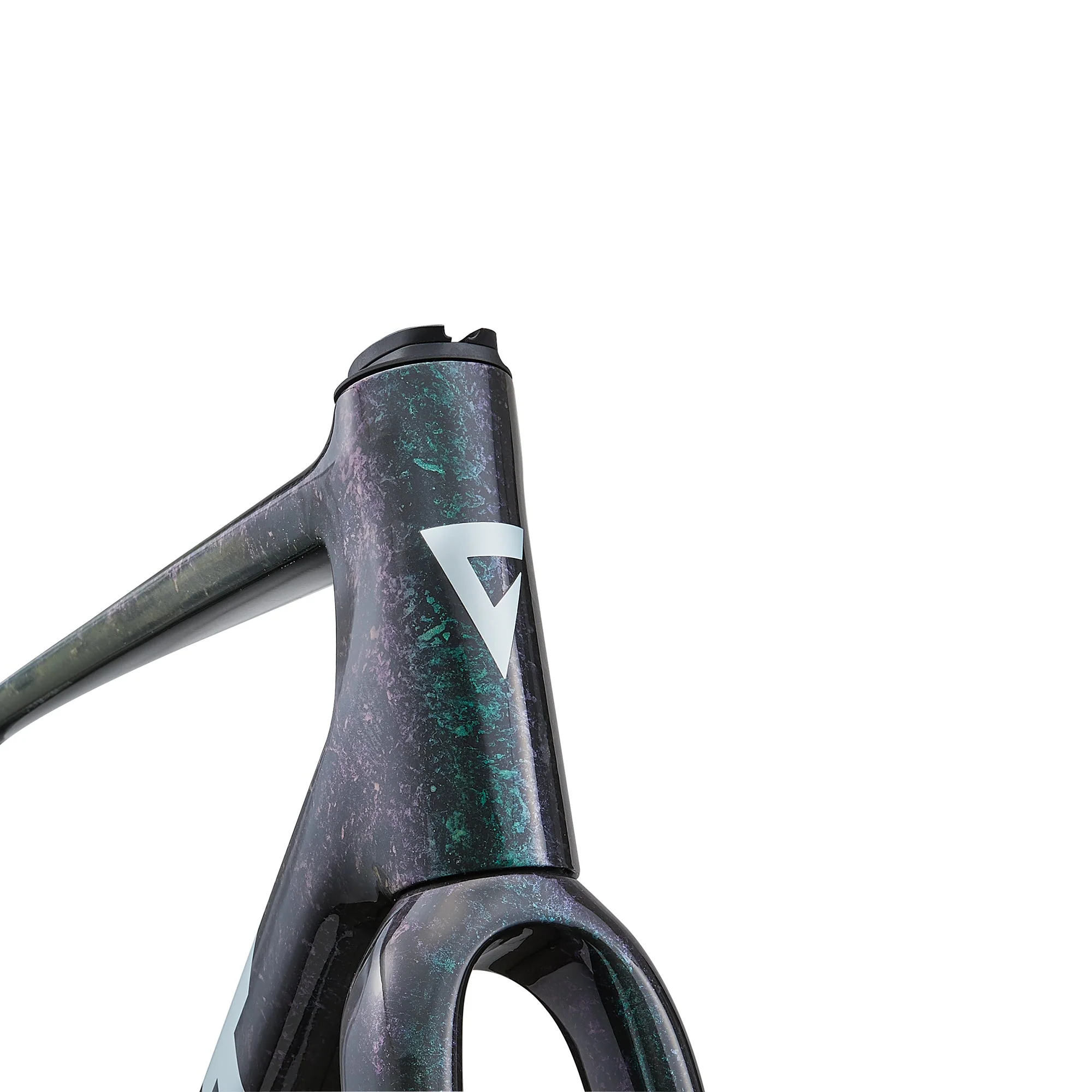

Giant TCR Advanced SL Frameset - Psychedelic Green

ETA LATE AUGUST

BUILT TO GO FASTER. WHETHER YOU’RE CLIMBING, CORNERING OR LAUNCHING AN ATTACK, THIS ALL-NEW COMPOSITE ROAD RACER IS MADE FOR THAT MOMENT. LIGHTWEIGHT, EFFICIENT, AND INTEGRATED FOR SPEED, IT’S ENGINEERED TO GIVE YOU A COMPETITIVE EDGE IN EVERY SITUATION.
KEY PERFORMANCE FACTORS

SYSTEM OPTIMIZATION
The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS
All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

Model Name	TCR Advanced SL Frameset
Colours	Opal, Raw Carbon, Psychedelic Green, Racing Blue
Sizes	XS, S, M, M/L, L, XL
Frame	Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc
Fork	Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock	N/A
Handlebar	N/A
Grips	N/A
Stem	N/A
Seatpost	Advanced SL-Grade composite, integrated design, -5/+15mm offset
Saddle	N/A
Pedals	N/A
Shifters	N/A
Front Derailleur	N/A
Rear Derailleur	N/A
Brakes	N/A
Brake Levers	N/A
Cassette	N/A
Chain	N/A
Crankset	N/A
Bottom Bracket	BB86 accepts press fit style BB only, bearing set not included
Rims	N/A
Hubs	N/A
Spokes	N/A
Tyres	N/A
Extras	Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps

TCR Advanced SL		XS	S	M	ML	L	XL
A	Seat tube length	680	710	740	770	800	830
B	Seat tube angle (degrees)	74.50	74.00	73.50	73.00	73.00	72.50
C	Top tube length	520	535	550	565	580	600
D	Head tube length	120	130	145	165	185	200
E	Head tube angle (degrees)	71.00	72.25	73.00	73.00	73.00	73.00
F	Fork rake	45	45	45	45	45	45
G	Trail	72	64	59	59	59	59
H	Wheelbase	976	977	980	991	1006	1020
I	Chain stay length	405	405	405	405	405	405
J	Bottom bracket drop	72.0	69.5	69.5	67.0	67.0	67.0
K	Stack	517	528	545	562	581	596
L	Reach	376	383	388	393	402	412
M	Stand over height	703	722	743	771	798	822
N	Handlebar width	400	400	420	420	440	440
O	Stem length	80	90	100	110	110	120
P	Crank length	170.0	170.0	172.5	172.5	175.0	175.0
Q	Wheel size	700C	700C	700C	700C	700C	700C
