Liv Intrigue X Advanced E+ 3 - Shoreline

Next-level performance and unforgettable fun await you on this premium E-MTB. The cutting-edge Intrigue X Advanced E+ Elite is remarkably light yet super powerful. Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs, and corner at top speed.

DETAILS
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimises weight and provides a perfect balance of efficiency and range.
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.



DETAILS
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.

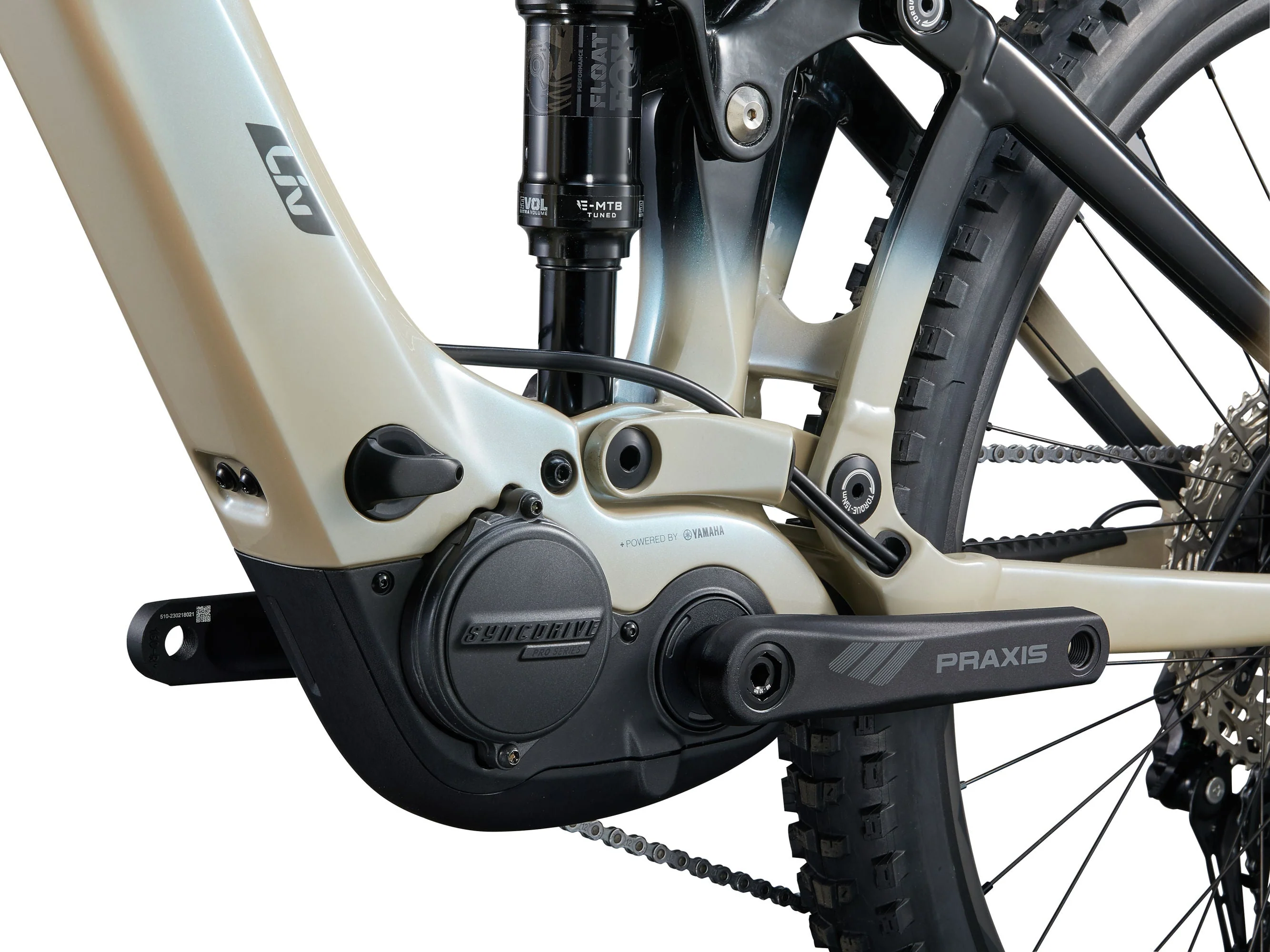

Motor:Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Controller:Giant RideControl Ergo3, grip integrated remote
Display:Giant RideControl GO, frame integrated LED console
Optional wireless ANT+ display
Battery:Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production
Giant EnergyPak Plus 200 range extender compatible
Sizes:XS, S, M, L
Frame:Advanced-grade composite frame, Aluxx SL-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system

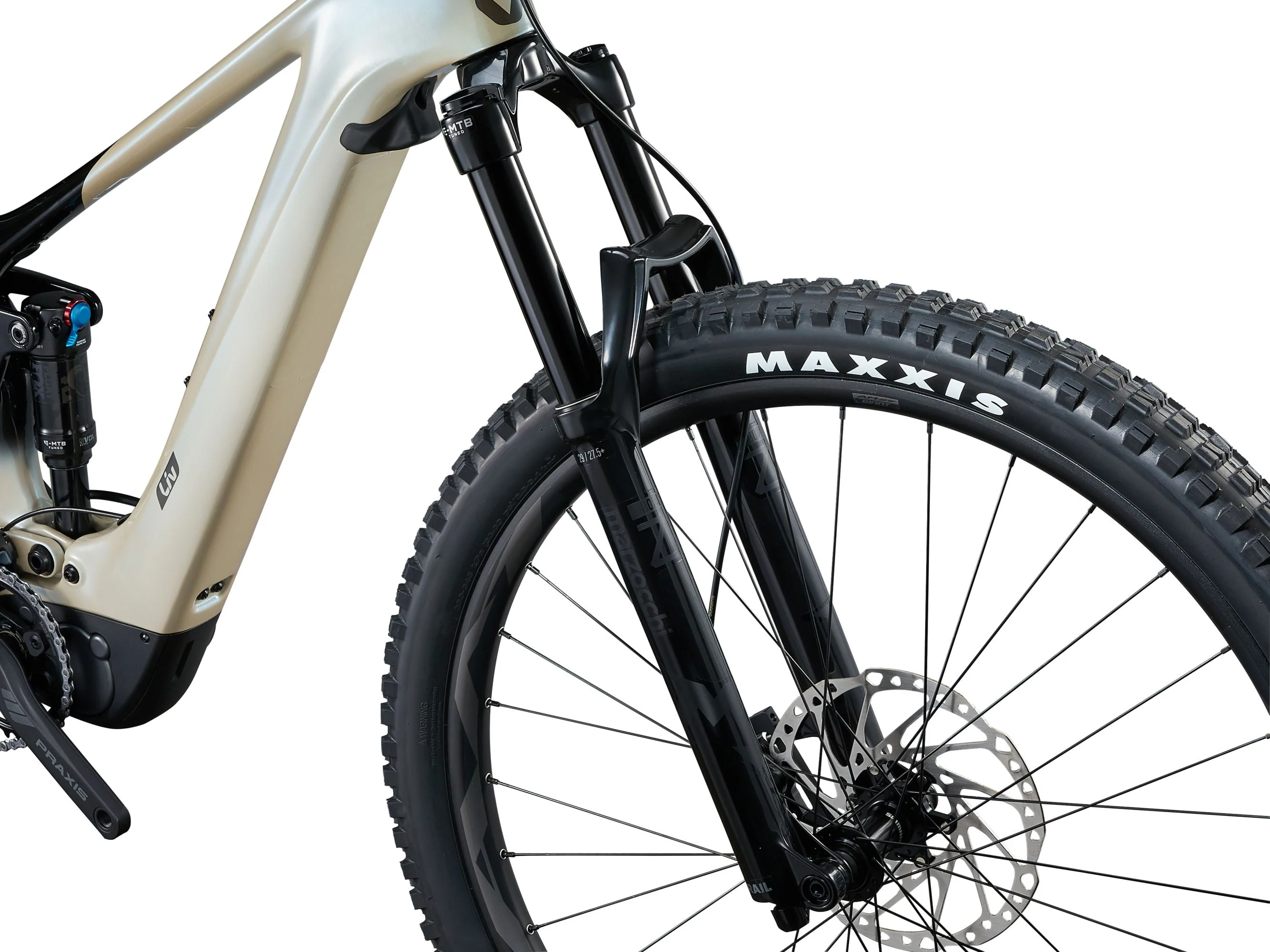

Fork:Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
Shock:Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned
Handlebar:Giant Contact 35 Trail, 35x760mm (XS-S), 780mm (M-L)
Grips:Liv Tactal Pro-E Single Lock-On Grips
Stem:Giant Contact SL 35
Seatpost:Tranz-X Rad+ dropper, 30.9mm, 30mm travel adjustable
XS/S: 90-125mm
M: 120-150mm
L: 140-170mm
Saddle:Liv Sylvia E+
Pedals:N/A
Shifters:Shimano Deore
Front Derailleur:MRP HD2 co-moulded chain guide
Rear Derailleur:Shimano Deore 12-speed, Shadow+
Brakes:Shimano BR-MT420, 4-piston, hydraulic disc, 203mm
Brake Levers:Shimano Deore, I-spec EV
Cassette:Shimano CS-M6100-12, 10-51T, 12-speed
Chain:KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset:Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks
Q-factor=168
XS/S: 160mm
M/L: 165mm
Bottom Bracket:n/a
Rims:AM30, Tubeless ready, 30mm inner width
[F] 29"
[R] 27.5"
Hubs:Shimano MT410 Boost, Center-Lock, 110x15 [F] / 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
Spokes:Sapim E-Lite [R] Race [F], e-bike optimized
Tires:
[F] Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO
[R] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO
Extras:Tubeless kit (liquid, valves, levers, manual, tool)
Inner tube supplied
Lighting:
Optional: Giant Recon series e-bike lights available and direct connectable

"Before using this vehicle check the applicable local laws relating to the intended use of the vehicle on roads and road related areas."
