The Story
Accelerate up climbs, float through rock gardens, and experience more power, agility, and control with this lightweight, full-suspension E-MTB.
DETAILS

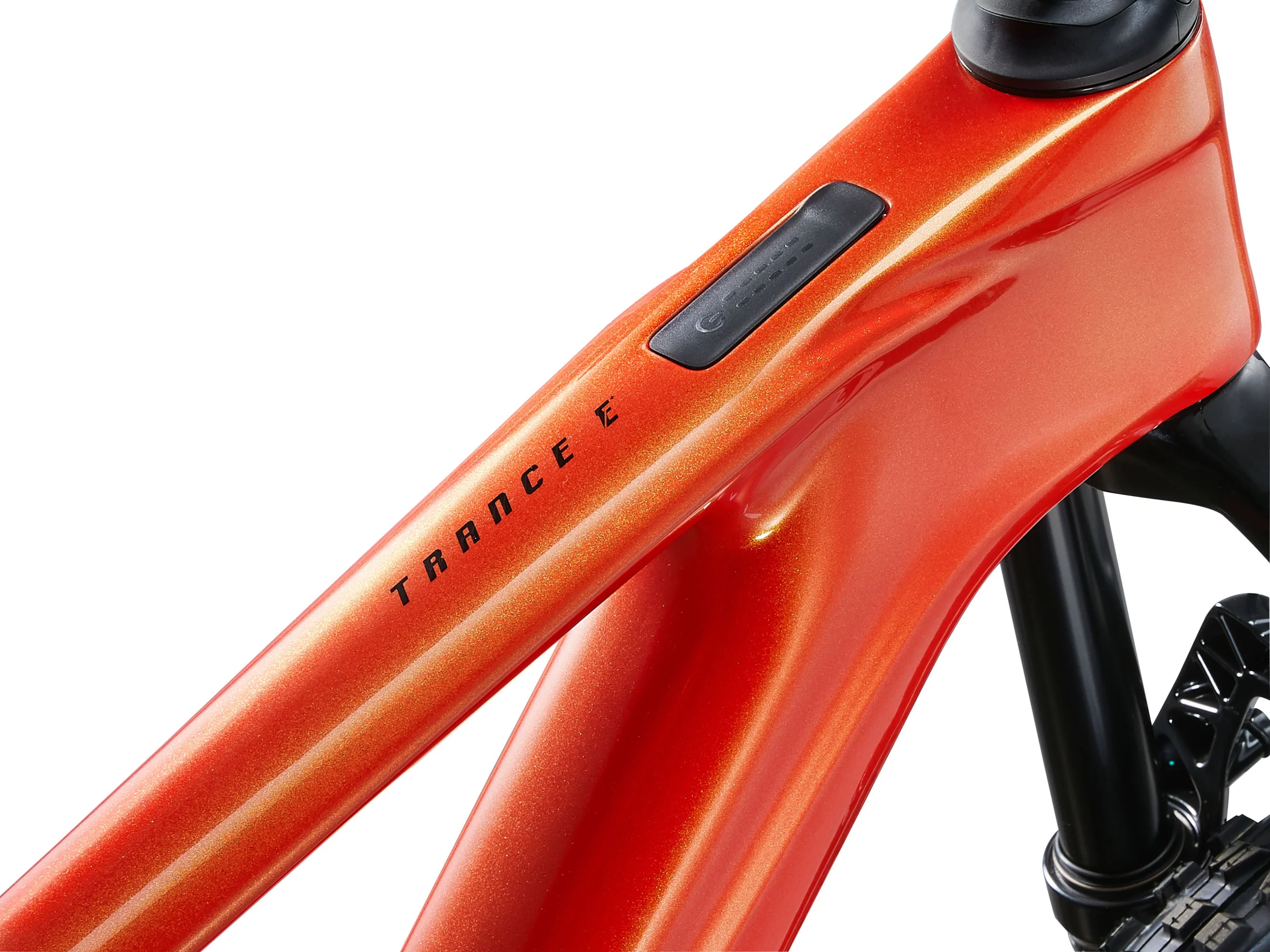

Lighter weight: EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.
Advanced cockpit control: RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
More power: New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterizes SyncDrive Pro motors. It's also engineered for a reduced noise level and quiet performance.
Motor: SyncDrive Pro2, 85Nm, powered by Yamaha
Battery: EnergyPak Smart 400Wh, EnergyPak Plus, range extender compatible
Charger: EnergyPak 4A smart charger compact
Controller: RideControl Ergo 3, grip integrated
Display: RideControl GO, frame integrated LED display, ANT+ Wireless display compatible
Frame: Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, 140mm Maestro suspension, flip chip, UDH hanger, 12x148mm thru-axle
Fork: Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110

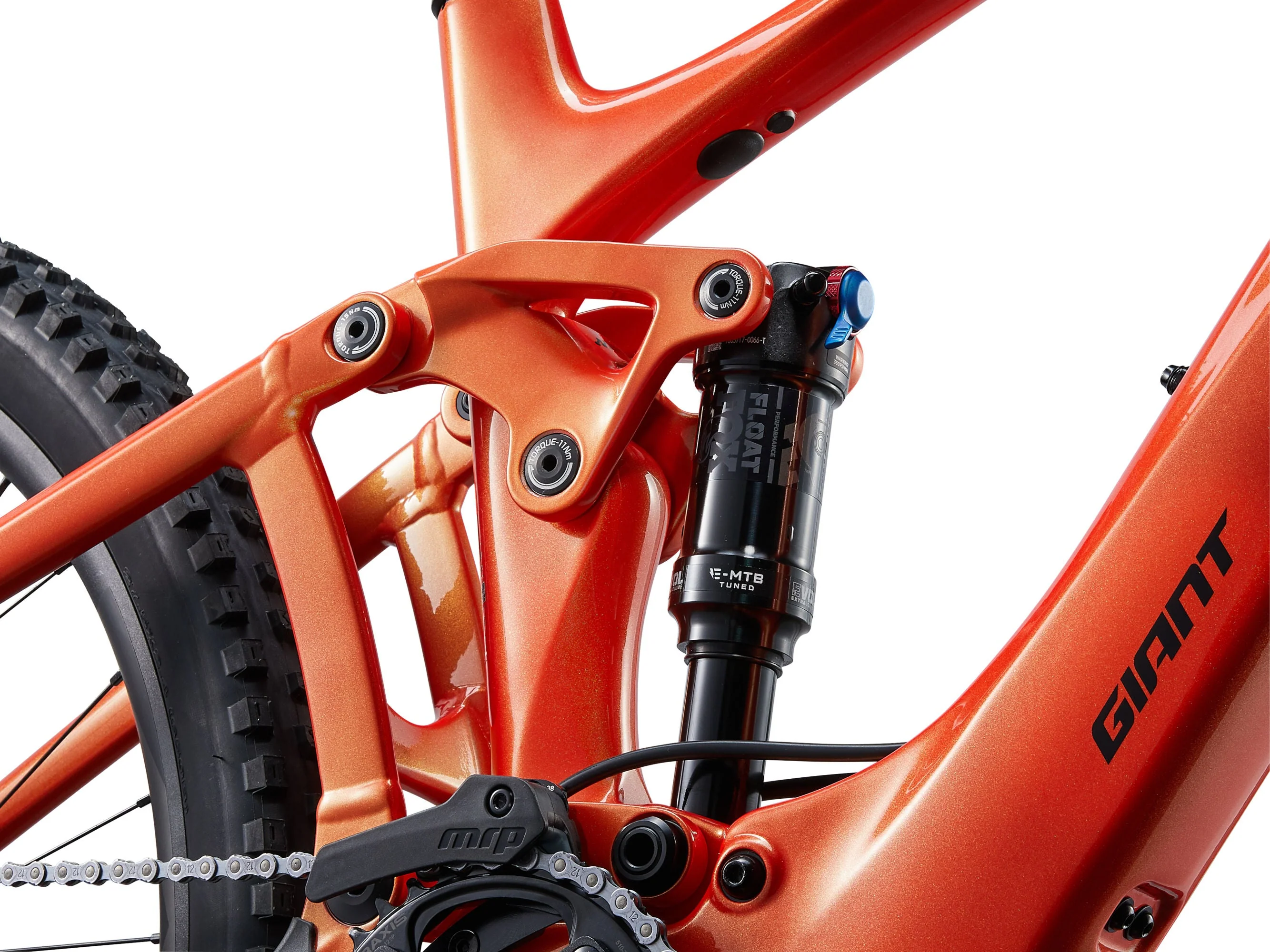

Shock: Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, custom tuned
Handlebar: Giant Contact SL 35 Trail, 35mm
Stem: Giant Contact SL 35
Stem Length:
S, M, L: 40mm
XL: 50mm
Seatpost: TranzX travel-adjustable dropper, remote, 30.9
Saddle: Giant Romero
Pedals: N/A
Shifters: Shimano Deore
Front Derailleur: MRP HD2 co-moulded chain guide
Rear Derailleur: Shimano Deore, 12-speed, Shadow+
Brakes: Shimano BR-M420, 4-piston, hydraulic disc
[F] 203mm
[R] 203mm
Brake Levers: Shimano Deore, I-spec EV
Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimised
Crankset: Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
Crank Arm Length:
S: 160mm
M, L: 165mm
XL: 170mm
Bottom Bracket: N/A
Rims:
Giant AM, alloy
[F] 29"
[R] 27.5"
Hubs:
[F] Shimano MT410 15x110
[R] Shimano MT410 12x148
Spokes: Sapim, e-bike optimised
Tires:
[F] Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO
[R] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO
Extras: Tubeless kit (liquid, valves, levers)
"Before using this vehicle check the applicable local laws relating to the intended use of the vehicle on roads and road related areas."
