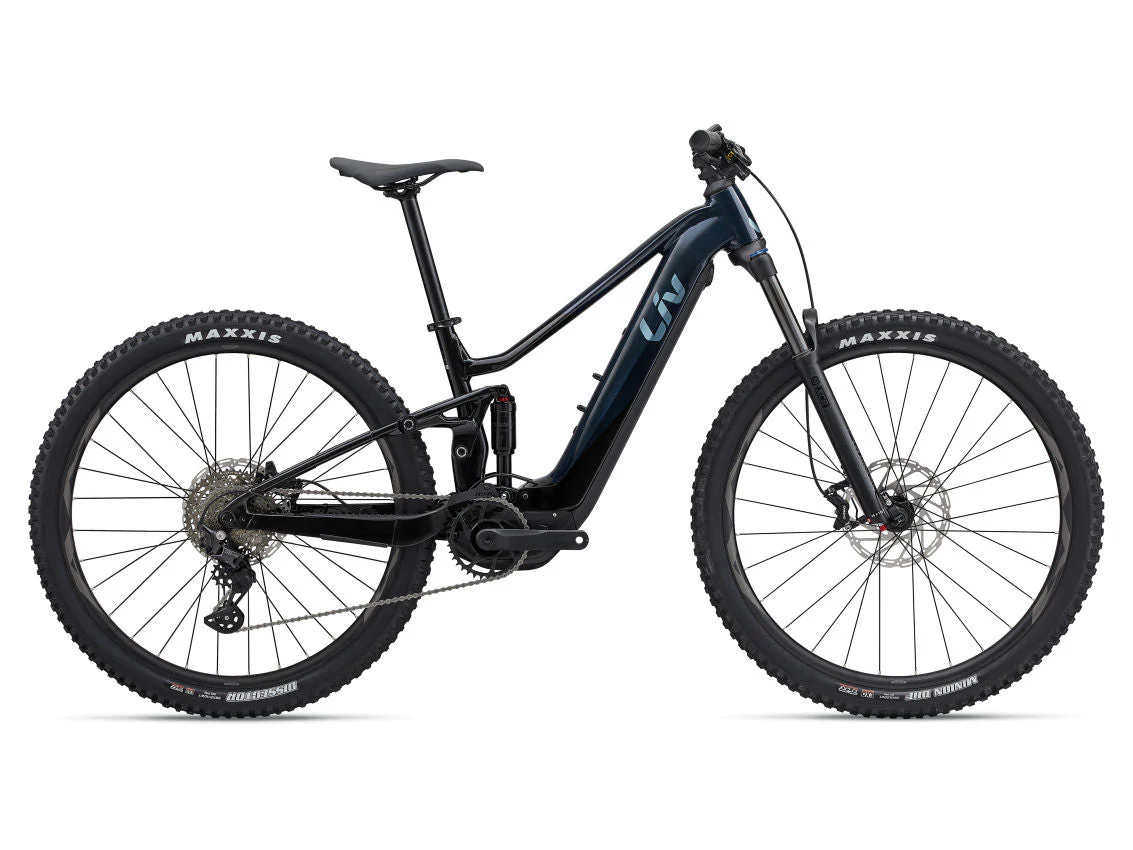

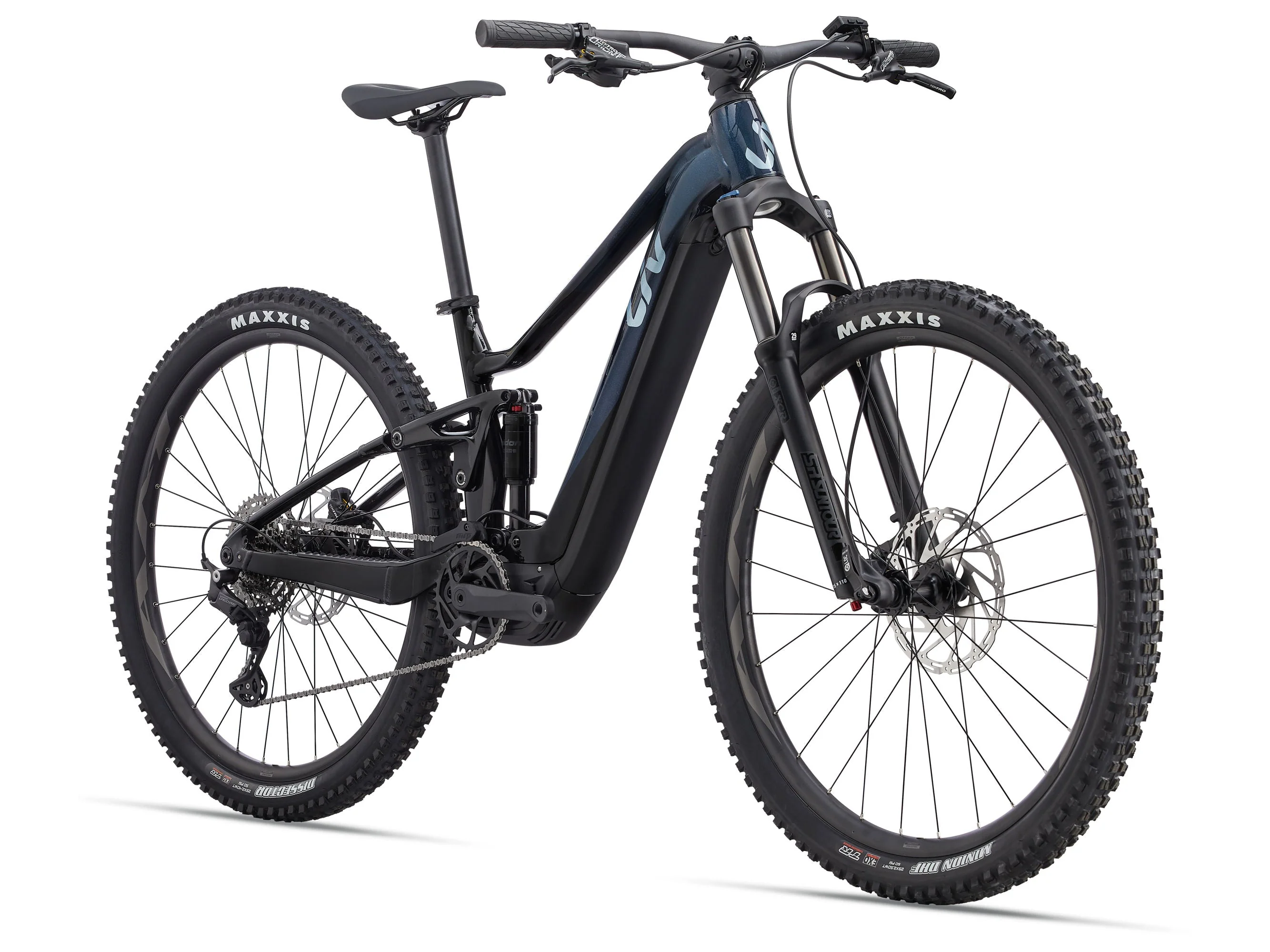

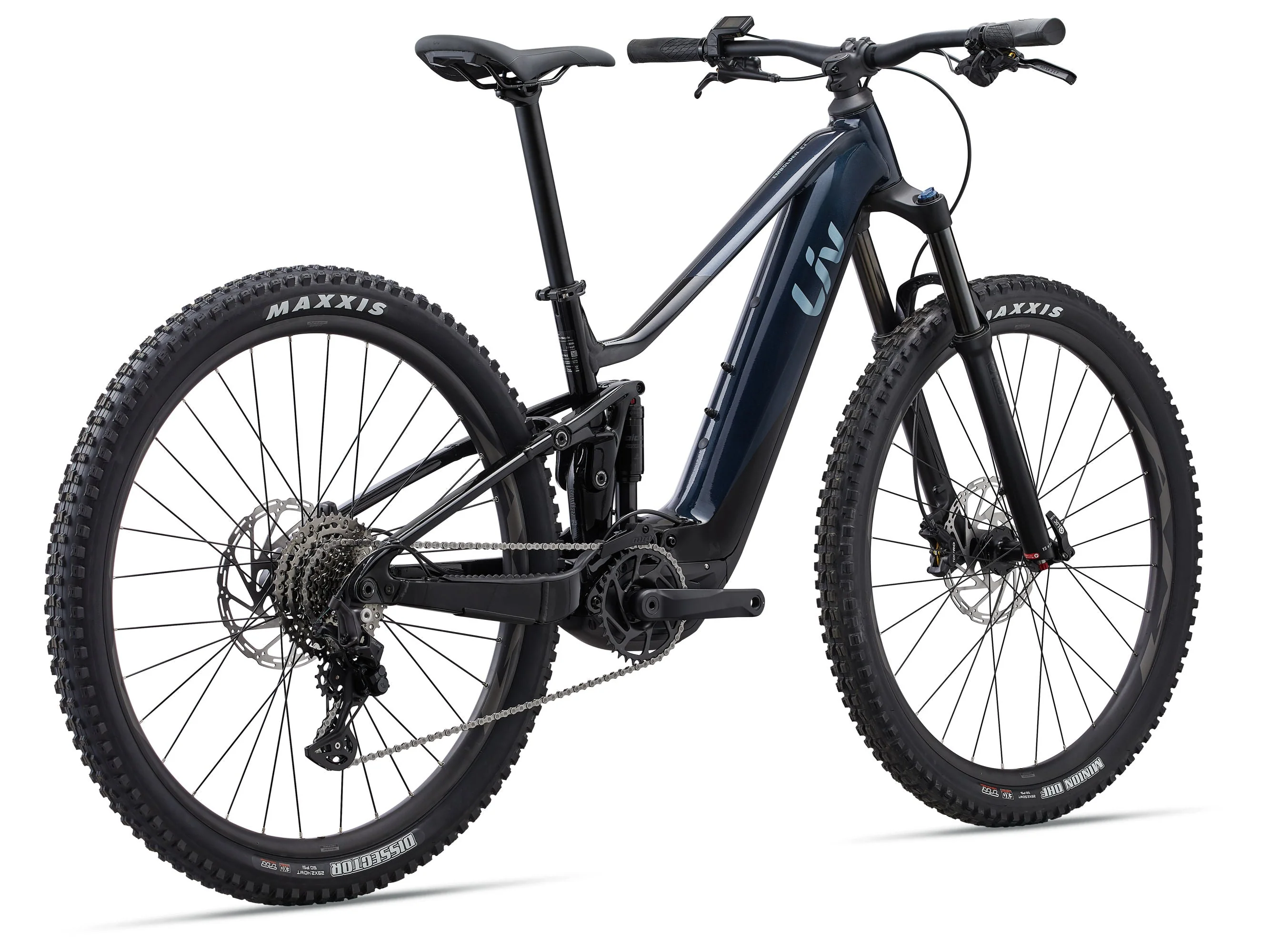

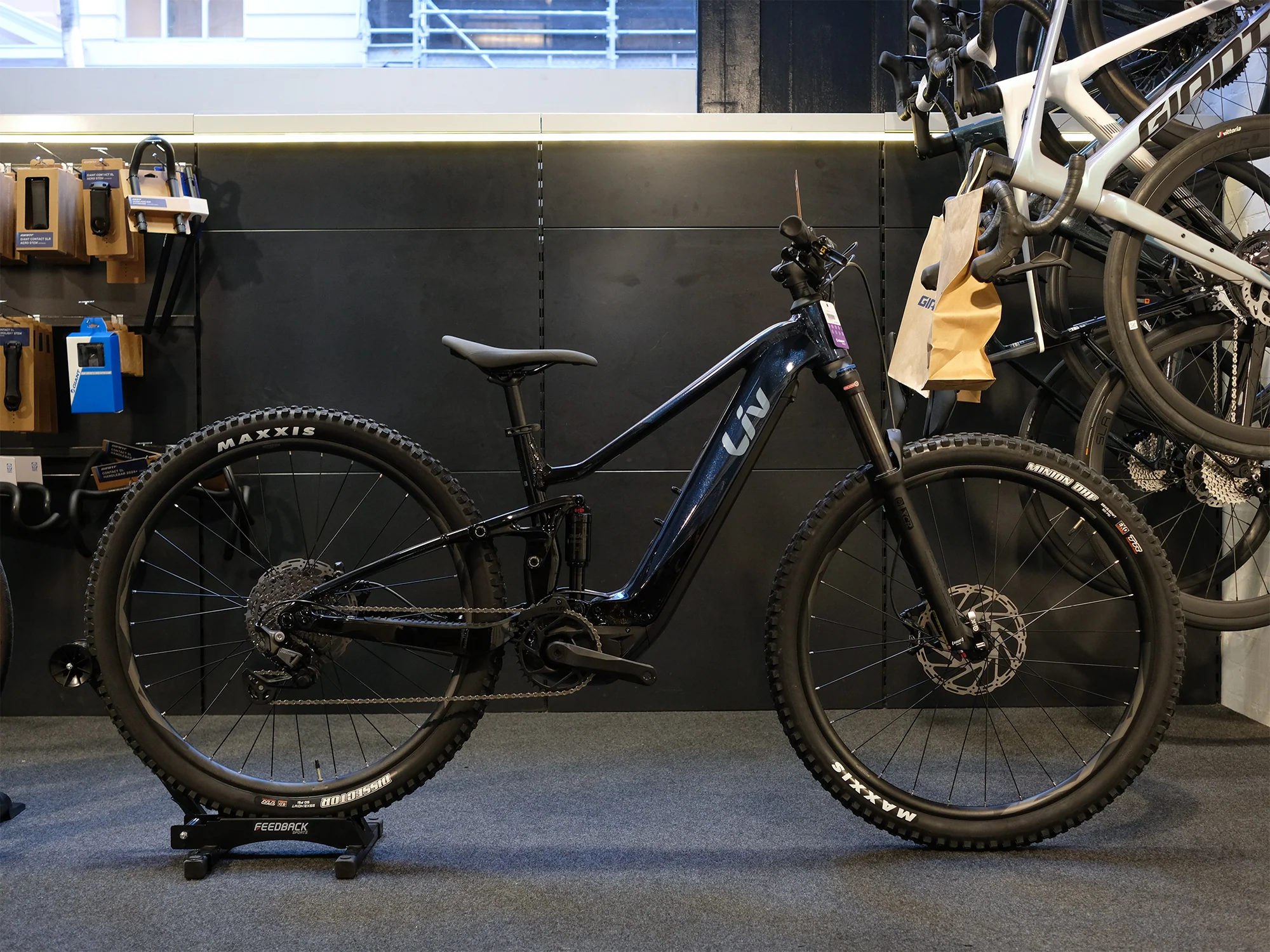

The powerful Embolden E+ offers an exhilarating driving experience. A maximum range of 180 km, plenty of suspension travel (140 mm front, 125 mm rear) and a powerful motor (75 Nm torque) bring you closer to your dream. Epic mountain biking, trekking and touring adventures are now possible.
MotorSyncDrive Sport 2, 75Nm, powered by Yamaha
ControllerRideControl Dash
DisplayRideControl Dash, full colour LCD screen
BatteryEnergyPak Smart 625, EnergyPak Plus 250Wh range extender compatible
SizesXS: 27.5" / S, M, L: 29"
ColoursCosmos Navy
FrameALUXX SL-Grade aluminium, 125mm travel FlexPoint suspension system, 12x148mm thru-axle, UDH hanger
ForkSR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle
ShockSR Suntour Raidon R, 190x45mm, custom tuned
HandlebarGiant Connect TR Riser
GripsLiv Tactal Pro Single Lock-On Grips
StemGiant Contact
SeatpostGiant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
SaddleLiv sylvia E
PedalsPlatform
ShiftersShimano Deore LinkGlide
Front DerailleurMRP HD2 co-moulded chain guide
Rear DerailleurShimano Deore LinkGlide, 10-speed
BrakesTektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
Brake LeversTektro HD-M745 Orion
CassetteShimano CS-LG400-10, 11-43T, 10-speed LinkGlide
ChainShimano, LinkGlide, CN-LG500
CranksetFSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
Bottom BracketN/A
RimsGiant AM 27.5" (XS), 29"(S, M, L)
HubsGiant eTracker Boost, [F] 110x15 [R] 148x12mm
SpokesStainless Steel
TiresMaxxis Minion DHF 27x2.5"(XS), 29X2.50"(S, M, L) Foldable, TLR, EXO, 60TPI [F]Maxxis Dissector 27.5x2.4"(XS), 29X2.40"(S, M, L) Foldable WT, TLR, EXO, 60TPI [R]
"Before using this vehicle check the applicable local laws relating to the intended use of the vehicle on roads and road related areas."
